Automatic Double Head Wood Pallet Notcher With Automatic Feeding System For Pallet Manufacturer

Brand Name : SH

Model Number : SLJ-2

Certification : ISO9001

Place of Origin : Shandong Province, China

MOQ : 1 SET Automatic feeding machine for pallet notcher

Price : USD4300-8400/SET

Payment Terms : T/T, Western Union

Supply Ability : 100sets/month of Automatic feeding machine for pallet notcher

Delivery Time : within 15 days for Automatic feeding machine for pallet notcher

Packaging Details : export iron frame packing Automatic feeding machine for pallet notcher

Name : Automatic feeding machine for pallet notcher

Length of loading plank : 800-1300mm

Width of loading plank : 60-120mm

Motor power : 2.2kw

Capacity : 1800pcs/hour

Groove depth : <45mm

Voltage : 380v 50hz 3 Phase or customized

main motor : 30kw

Machine size : 2300*1300*1300mm

Quality guarantee : 1 Year

Contact Now

Double Slot Wood Pallet Notcher, Double Head Pallet Notcher, Notching Machine for wood pallet

Automatic Feeding Machine for Wood Pallet Groove Stringer Notcher/wood Pallet Notcher Machine

Feeding wood boards for the pallet notcher machine
Technial data

Model	SLJ-2
Length Of Loading Sheet	800-1300mm
Width Of Loading Sheet	60-120mm
Motor Power	2.2kw
Power	30kW
Material Of Knife	Alloy
Capacity	1800pcs/h
Wood Pallet Length	Max 1400mm
Wood Pallet Width	60-120mm
Wood Pallet Thickness	40-60mm
Slot Depth	＜45mm
Slot Width	200-230mm
Machine Size	220012001300mm
Machine Wight	2150kg

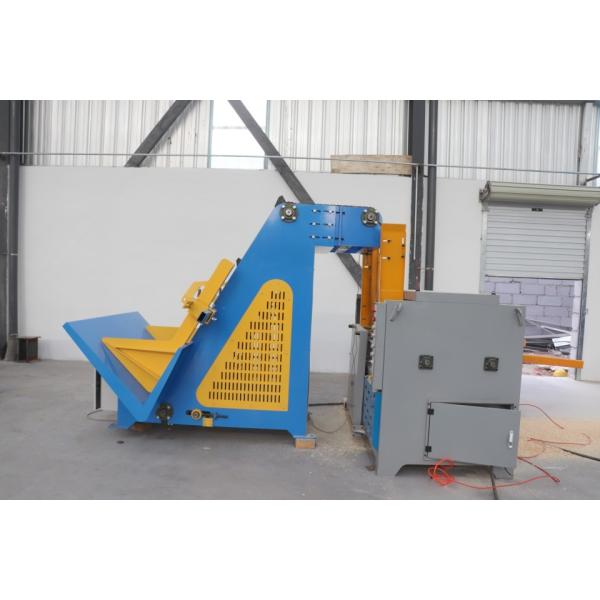

Detailed Images

Automatic Double Head Wood Pallet Notcher With Automatic Feeding System For Pallet Manufacturer

Related Products

Double Spindle Panel Cutting Multiple Blades Rip Saw

1.Used for Lumber/Panels/Planks Cutting

2.Max. cutting depth/thciness is upto 160mm

3.Max. cutting width is upto 400mm

4.Big motor power, fit for hardwood cutting

5.Blades is placed on up/down abrod/spindle .

6.We present one set discs on your cutting thickness

Specifications:

Model		SH80-300		SH120-250		SH160-250
Max. sawing width		300mm		250mm		250mm
Max. sawing thickness		80mm		120mm		160mm
Min sawing length		600mm		500mm		500mm
Motor power		15kw x2		22kw x2		30kw x2
Saw blade diameter		180mm		230mm		255mm
Machine weight		1200kg		1800kg		2000kg
Model	SH120-300		SH160-300		SH160-400
Max. sawing width	300mm		300mm		400mm
Max. sawing thickness	120mm		160mm		160mm
Min sawing length	600mm		600mm		600mm
Motor power	22kw x2		30kw x2		37kw x2
Saw blade diameter	230mm		280mm		280mm
Machine weight	2500kg		2800kg		3000kg
Feeding	Variable frequency speed adjustable automatic feeding
Cooling blade	Spindle center water cooling blade
