Timber Sawmill Machine Production Line, Twin Heads Vertical Band Saw

Place of Origin : shandong province, China

Brand Name : SH

Certification : ISO9001

Model Number : SLS350, SLS500

MOQ : 1 SET

Price : US $12,000 - 140,000 / Set

Packaging Details : container loading

Delivery Time : within 25 days

Payment Terms : T/T or L/C at sight, Western Union

Supply Ability : 500sets/year

Condition : New

Name : Timber sawing line Twin Heads Vertical Bandsaw

Max. cutting log diameter : 500mm

Cutting length : 3500mm or as customer needs

Application : Sawing logs into timbers

Saw wheel diameter : 700mm

After-sales service provided : Online support,commissioning and training, video technical support

Cutting log type : hardwood/softwood

Sawn board width of bandsaw : 300mm

Others : Do design according to customer needs

Contact Now

Timber Sawing Twin Vertical Bandsaw Production Line

This line is deigned for Cutting log diameter 100-400MM,Log length 3500MM

	Control platform
	Overall size	3000*1500mm
	display	LCD Monitor
	Operation	distant control
	Wood loading rack
	length of conveyor	4000mm
	width of conveyor	2500mm
	feeding mode	inverter feeding by chain
	motor power	3KW
	log loading	Pneumatic
	Log rolling & guiding conveyor belt
	rolling log max. length	4000mm
	feeding mode	inverter speed adjustable
	motor power	6kw
	Operation	distant control

Twin Vertical Saw for round logs

1. Vertical cutting to process wood logs into square wood log.

2. Frequency variable feeding speed

3. Big size band wheel to saw wood logs

Timber Sawmill Machine Production Line, Twin Heads Vertical Band Saw

Model	SLS350	SLS500
Maximum sawing log diameter (mm)	350	500
Minimum sawing log diameter (mm)	100	100
Cutting length (mm)	1000-3000	1000-3000
Band wheel dia.(mm)	700mm	760mm
Feeding speed	9-25m/min	9-25m/min
Feeding conveyor length	3500mm	3500mm
Outlet conveyor length	3500mm	3500mm
Main motor of saw	2x 18.5kw	2x22kw
Feeding motor	5.5kw	4kw x2
Band saw blade width	50-80mm	50-100mm
Band saw blade thickness	0.9-1.1mm	0.9-1.1mm
Touching screen sets sawn sizes and digital display; Variable frequency speed adjustable feeding speed

Roller Conveyor with Centralize Adjustment
	length	6000mm
	width	1000mm
	power	2.2kw
	Centeralise control	pneumatic

SLSP400 Twin Bandsaw for log in plat bottom
	sawing max. diameter	400mm
	sawing min. diameter	150mm
	sawing length	800-3000mm
	saw wheel diameter	700mm
	sawing speed	9-25meters/min
	main motor power	18.5kw x 2sets
	sawn size settting	CNC touching screen

Wood Slabs Conveyor
	conveyor length	3000mm
	conveyor width	2500mm
	motor power	2.5kw

DT300-5 Multiple Heads Band Saw Machine
	sawing max. width	300mm
	sawing max. thickness	300mm
	main motor power	15KW X 5 sets
	feeding	Inverter speed adjustable
	control	control cabinet

BPJ300 Wood Slabs Cutting Saw
	sawing max. width	300MM
	sawing max. thickness	80mm
	main motor power	7.5kw x 2 sets
	feeding	inverter speed adjustable
	saw blade diameter	405mm

CB600 High Speed Board Edger Saw
	sawing max. width	600mm
	sawing max. thickness	80mm
	blade quantity	1-5pcs
	motor power	22KW

Timber Sawmill Machine Production Line, Twin Heads Vertical Band Saw

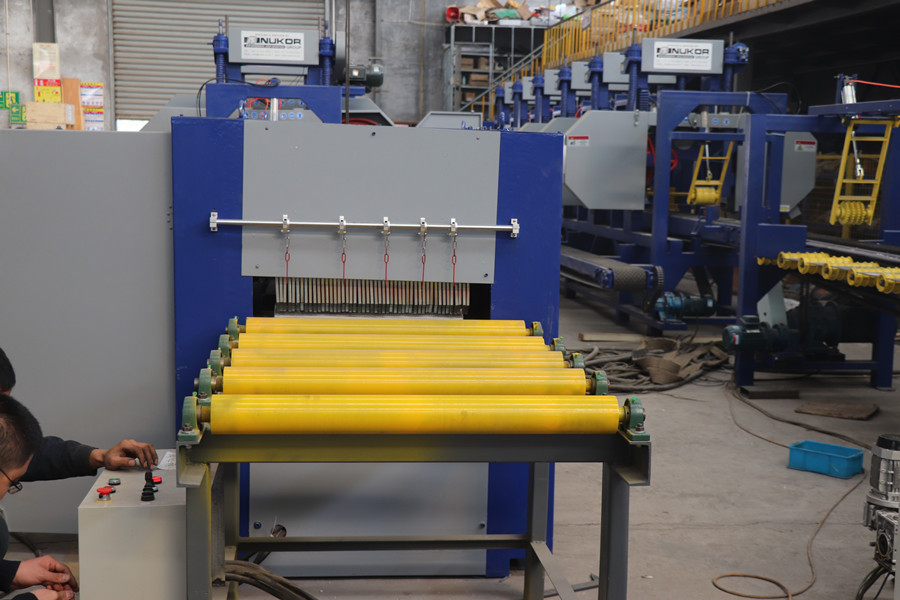

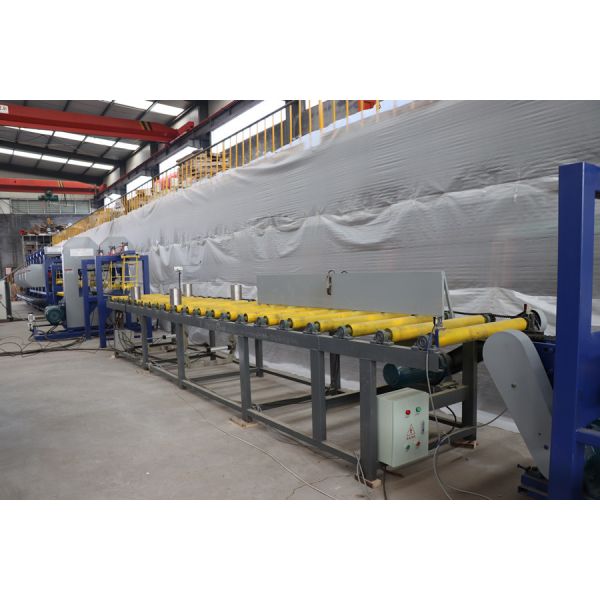

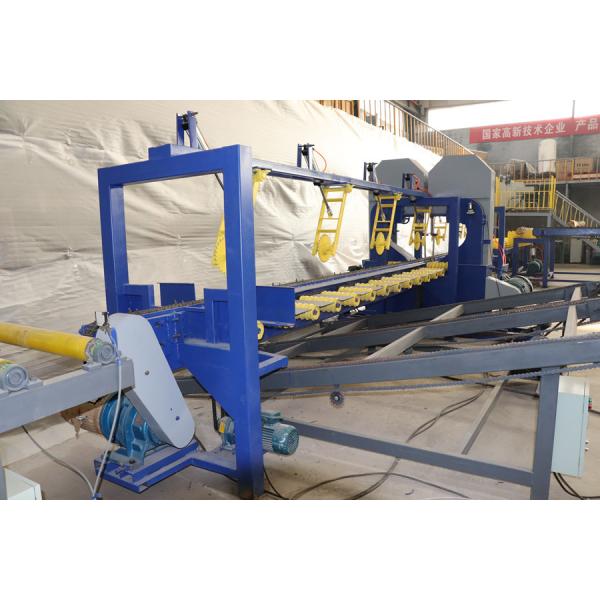

Timber Sawmill Machine Production Line, Twin Heads Vertical Band Saw Images
