Straight Knife Wood Shaving Machine Processing Wood Shavings as Horse Bedding

Wood Shaving Machine

• Process wood sticks,twigs,branches,wood scraps into shaving.
• Adjust the size and thickness of the wood shaving.
• It is the material for Plywood,furniture or paper factory.
• Add as filler to prevent damage when transport some fragile items.
• Use as nest shavings filler in poultry or animal breeding.
• Bio-energy ignition material.

• Technical Specifications:

  Model	SHBH500-2	SHBH500-4	SHBH500-6
  Processing wood max. length(mm)	800	1400	1400
  Processing max. width/diameter(mm)	500	500	500
  Shaft quantity	2	4	6
  Blade (pcs)	8	16	24
  Motor speed (rpm)	3500	3500	3500
  Bin length (mm)	800	1400	1400
  Total Motor power (kw)	10.5KW	23.25KW	30.75KW
  Shaving depth (mm)	0.2-1	0.2-1	0.2-1
  Shavings output	500KG/H	1000KG/H	1500KG/H
  Machine weight	950kgs	1800kgs	2200kgs
  1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity;



• Blade

•

  Optional Parts- conveyor for shavings





  End Wood Shavings





  Export pallet Packing



  Screw Shaft Wood Shaving Machine for pets animals


  Model	SHBH500-2-L	SHBH500-4-L	SHBH500-6-L
  Processing wood max. length(mm)	800	1400	1400
  Processing max. width/diameter(mm)	500	500	500
  Shaft quantity	2	4	6
  Blade (pcs)	84pcs/shaft	84pcs/shaft	84pcs/shaft
  Motor speed (rpm)	3500	3500	3500
  Bin length (mm)	800	1400	1400
  Total Motor power (kw)	10.5KW	23.25KW	30.75KW
  Shaving depth (mm)	0.1-0.5mm adjustable	0.1-0.5mm adjustable	0.1-0.5mm adjustable
  Shavings output	300KG/H	700KG/H	1000KG/H
  Machine weight	950kgs	1800kgs	2200kgs
  1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity;

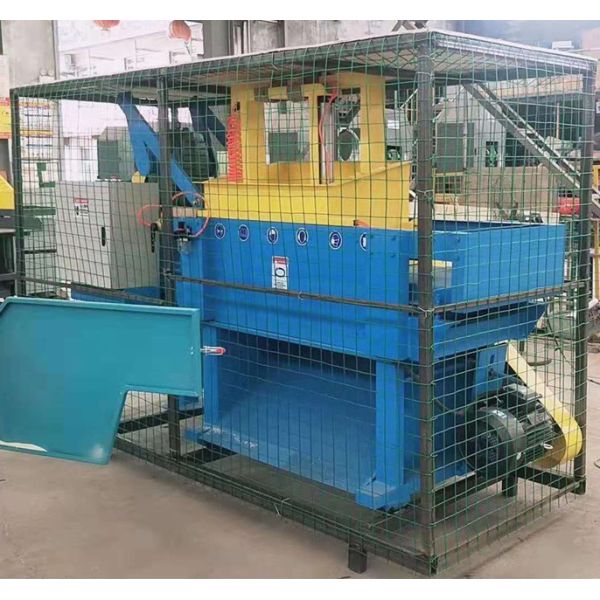

Straight Knife Wood Shaving Machine Processing Wood Shavings as Horse Bedding Images
